Switches

CX 6000 Switch Series

The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.

Read More

Power consumption: Max Power (w/o PoE): 49.7W
Max Power (w/ PoE): 890W

Input voltage: 100-127 VAC / 200-240 VAC

Ports: 48x ports 10/100/1000BASE-T Class 4 PoE Ports
Supports PoE Standards IEEE 802.3af, 802.3at

Latency: 1 Gbps: 1.9 μSec , 10 Gbps: 1.8 μSec

Routing capabilities: Static

Switching capacity: 176 Gbps

Throughput: 98.6 Mpps

Memory and processor: Dual Core ARM Cortex A9 @ 1016 Mhz 8 GB DDR3, maximum, depending on model 16 GB eMMC

PoE capability: 740W of Class 4 PoE

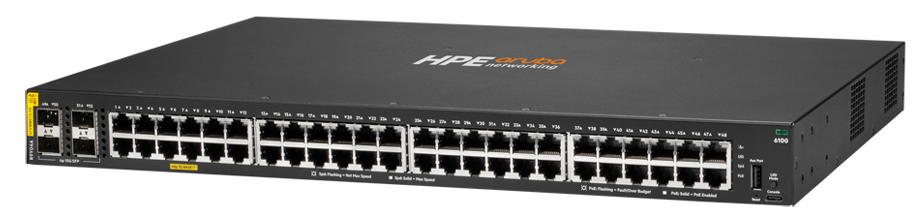

CX 6100 Switch Series

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, this switch family provides a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.

Read More

Power consumption: Max Power (w/o PoE): 49.7W
Max Power (w/ PoE): 890W

Input voltage: 100-127 VAC / 200-240 VAC

Ports: 48x ports 10/100/1000BASE-T Class 4 PoE Ports
Supports PoE Standards IEEE 802.3af, 802.3at

Latency: 1 Gbps: 1.9 μSec , 10 Gbps: 1.8 μSec

Switching capacity: 176 Gbps

Throughput: 98.6 Mpps

Memory and processor: Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model
16 GB eMMC

PoE capability: 740W of Class 4 PoE

CX 6200 Switch Series

The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer.

Read More

Power consumption: 76W at 230 VAC

Input voltage: 100V-120V/200V-240V

Ports: 48x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port
4x 100M/1/10G SFP+ ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port
1x RJ-45 Console Port 1x OOBM 1x USB Type-A Host port

Latency: 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec

Routing/switching capacity: 176 Gbps

Stacking capabilities: 8 members

Throughput: Up to 130.9 Mpps

Memory and processor: CPU: Quad Core ARM Cortex™ A72 at 1.8 GHz Memory and Flash: 8 GB DDR4 16 GB eMMC

PoE capability: Up to 740W of Class 4 PoE powerl

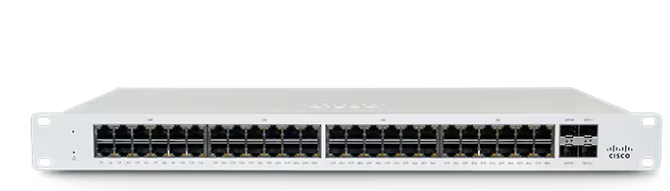

MS130-48

Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options designed to meet the diverse needs of branch and campus deployments.

With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready to support future wireless infrastructure deployments across a variety of different environments.

Read More

PoE/PoE+ options: 740 W

Optional: 8x 2.5 GbE mGig ports and 4x 10G SFP+ uplinks

Configure thousands of ports from a single dashboard

Layer 2, 802.1X authentication

MS130 mGig (-X) models are hardware-ready for Adaptive Policy with a future firmware upgrade and Advanced license

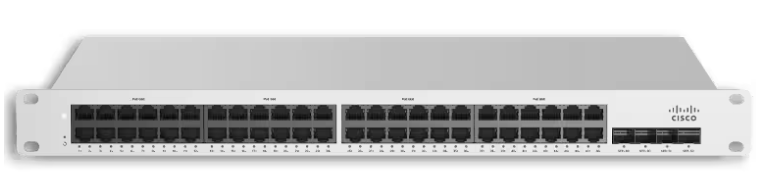

MS225-48

The Cisco Meraki MS225 series switches provide layer 2 access switching and are ideal for deploying to branch locations. With stacking capabilities and 10G SFP+ uplinks on every model, performance is guaranteed. This family also supports an optional, rack-mountable remote PSU (Cisco RPS-2300*) for power redundancy requirements.

With 5 different models, capable of providing up to 740W of PoE+ power over a variety of port densities, including SFP+ capable uplinks, the MS225 line is fully ready to support future wireless infrastructure deployments across a variety of environments.

Read More

STP enhancements, IPv4 and IPv6 ACLs

802.1X authentication

DHCP relay, DHCP snooping

Warm spare redundancy (VRRP)

Layer 2 with static routes
